Example

library(bipartite)
library(sbm)
library(Rlab)
library(aricode)
library(pROC)
library(reshape2)
library(ggplot2)
library(gridExtra)
library(CoOPLBM)

Simulation for 1 iteration

n1 = 100
n2 = 100
Q1 = 3
Q2 = 3
Q=Q1
P =matrix(c(0.95,0.75,0.5,
                 0.75,0.5,0.5,
                 0.5,0.5,0.05),Q1,Q2)

alpha1 = c(1/3,1/3,1/3)
alpha2 = c(1/3,1/3,1/3)
simulation1=simulate_lbm(P,alpha1,alpha2,n1,n2)
M = simulation1$A
Z1 =simulation1$Z
Z2 =simulation1$W
G= 300
lambda_i =rbeta(n1,0.3,1.5)
mu_j = rbeta(n2,0.3,1.5)
lambda_i = lambda_i/max(lambda_i)
mu_j = mu_j/max(mu_j)
N0=lambda_i%*%t(mu_j)*G
N=matrix(rpois(n1*n2,N0),nrow=n1)
R = M*N

obsrow = rowSums(R)>0
obscol = colSums(R)>0
R_obs = R[obsrow,obscol]
M_obs = M[obsrow,obscol]
Z1_obs = Z1[obsrow]
Z2_obs = Z2[obscol]
V = 1*(R_obs>0)

hist(lambda_i)

hist(mu_j)

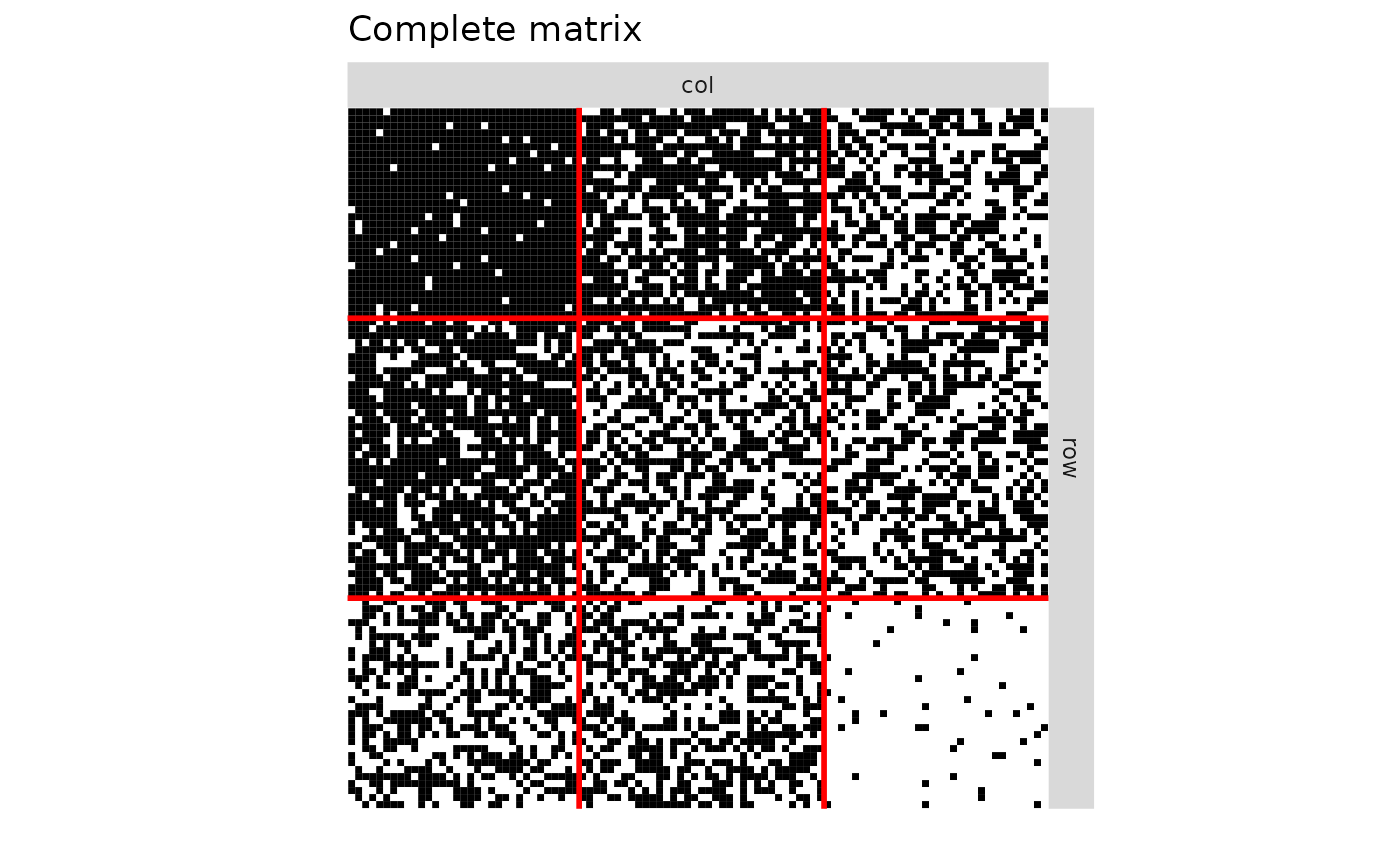

plotMyMatrix(M,clustering = list(row=Z1,col=Z2),plotOptions = list(line.width=1,title = "Complete matrix"))

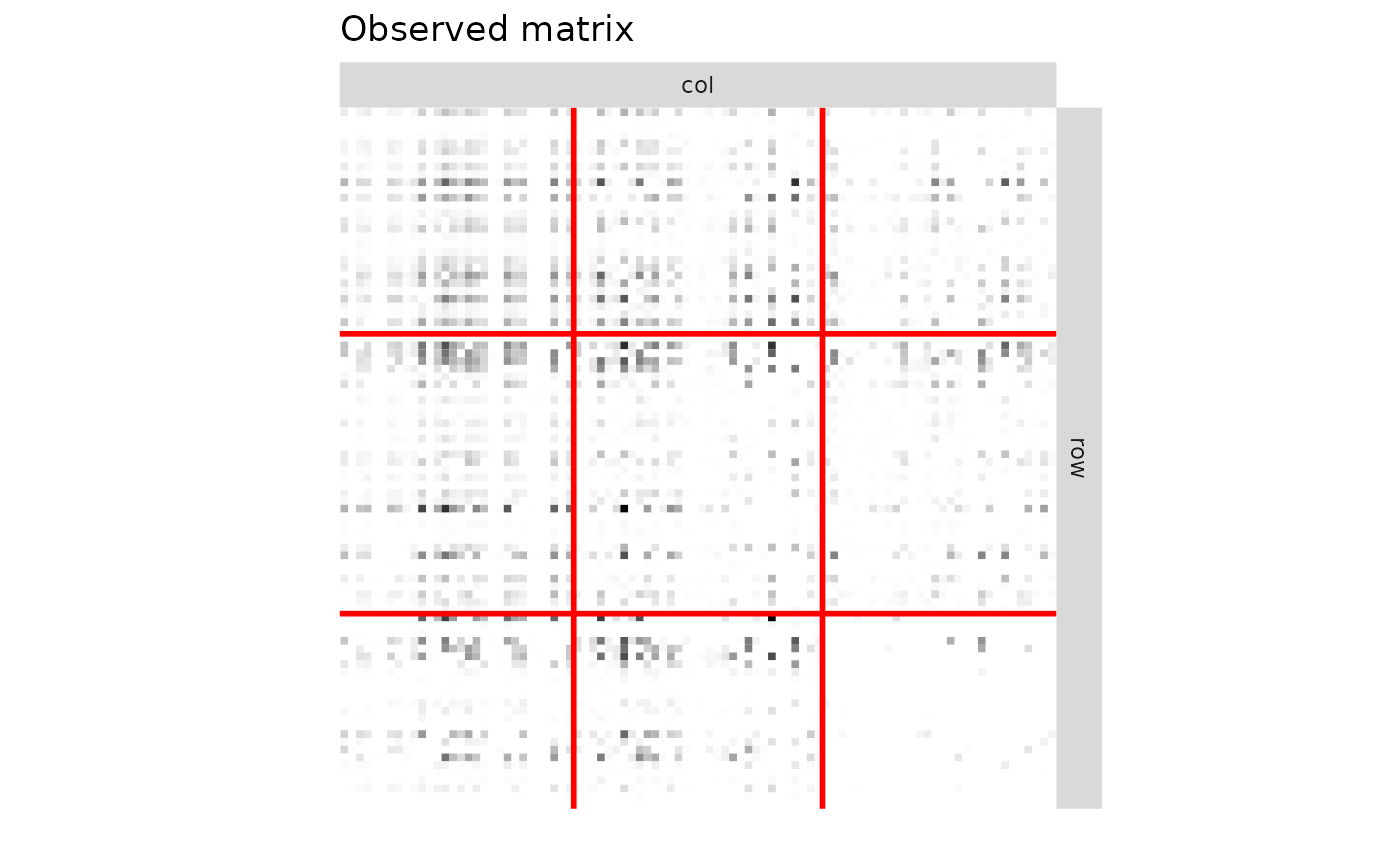

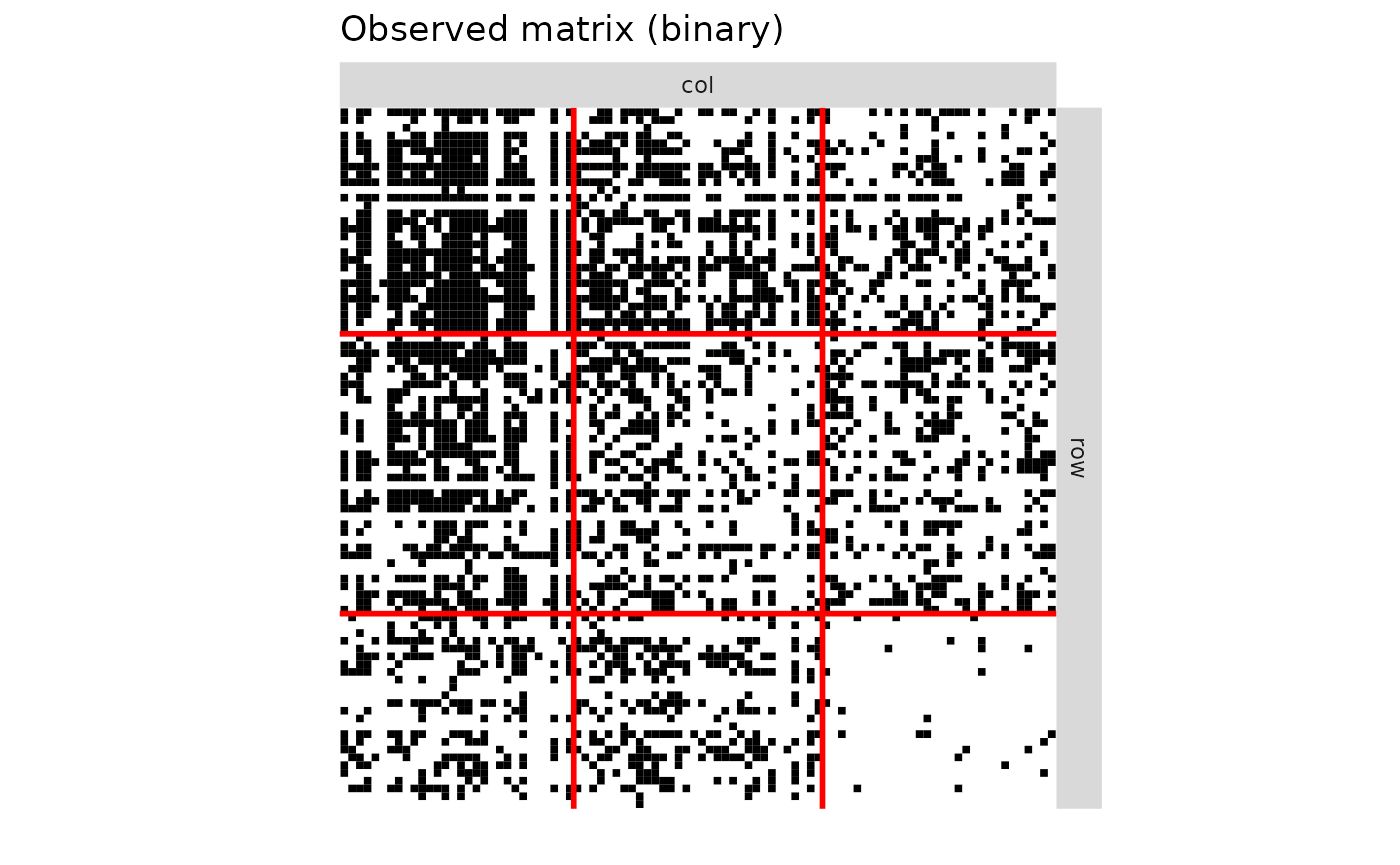

plotMyMatrix(V,clustering = list(row=Z1_obs,col=Z2_obs),plotOptions = list(line.width=1,title = "Observed matrix (binary)"))

plotMyMatrix(R_obs,clustering = list(row=Z1_obs,col=Z2_obs),plotOptions = list(line.width=1,title = "Observed matrix"))

try1=fit_unsupervised_LBM(V,exploOptions = list(plot=FALSE,verbosity=F))
#> [1] "LBM : Best model has been fitted with 4-5 groups."
try2=fit_unsupervised_CoOP_LBM(R_obs,exploOptions = list(plot=F,verbosity=F),estimOptions = list(maxIter  = 100))
#> [1] "CoOP-LBM : Best model has been fitted with 2-3 groups."

#Covariates for the Degree Corrected SBM
cov_row = lapply(2:nrow(V),function(k){
  X = matrix(0,nrow(V),ncol(V))
  X[k,] = 1
  X
})
cov_col = lapply(2:ncol(V),function(k){
  X = matrix(0,nrow(V),ncol(V))
  X[,k] = 1
  X
})
try3 = estimateBipartiteSBM(R_obs,model = "poisson",covariates = c(cov_row,cov_col),estimOptions = list(plot=F,verbosity=0,exploreMax = 10))

model1 = try1[[best_ICL(try1)]]
model2 = try2[[best_ICL(try2)]]
model3 = try3

print(paste("Degree-Corrected SBM : Best model has been fitted with ",try3$nbBlocks[1],"-",try3$nbBlocks[2]," groups.",sep=""))
#> [1] "Degree-Corrected SBM : Best model has been fitted with 5-5 groups."

#________________ARI SCORE________________



ARIL1=ARI(model1$cluster1,Z1_obs)
ARIC1=ARI(model1$cluster2,Z2_obs)

ARIL2=ARI(model2$cluster1,Z1_obs)
ARIC2=ARI(model2$cluster2,Z2_obs)

ARIL3 = ARI(model3$memberships[[1]],Z1_obs)
ARIC3 = ARI(model3$memberships[[2]],Z2_obs)

#________________COMPLETION OF MATRIX________________

V2 =V
V2[V2==0][sample(1:sum(V2==0),size = sum(M_obs)-sum(V),prob=model1$pi[model1$cluster1,model1$cluster2][V==0])]=1 #LBM
V3 = V
V3 =1*( runif(prod(dim(V)))< model2$connectivity_prob) #CoOP-LBM
V4 = V
V4[V4==0][sample(1:sum(V4==0),size = sum(M_obs)-sum(V))]=1 #Random˘
V5 =V
V5[V5==0][sample(1:sum(V5==0),size = sum(M_obs)-sum(V),prob=(1-exp(-fitted(model3)))[V==0])]=1 #DCSBM

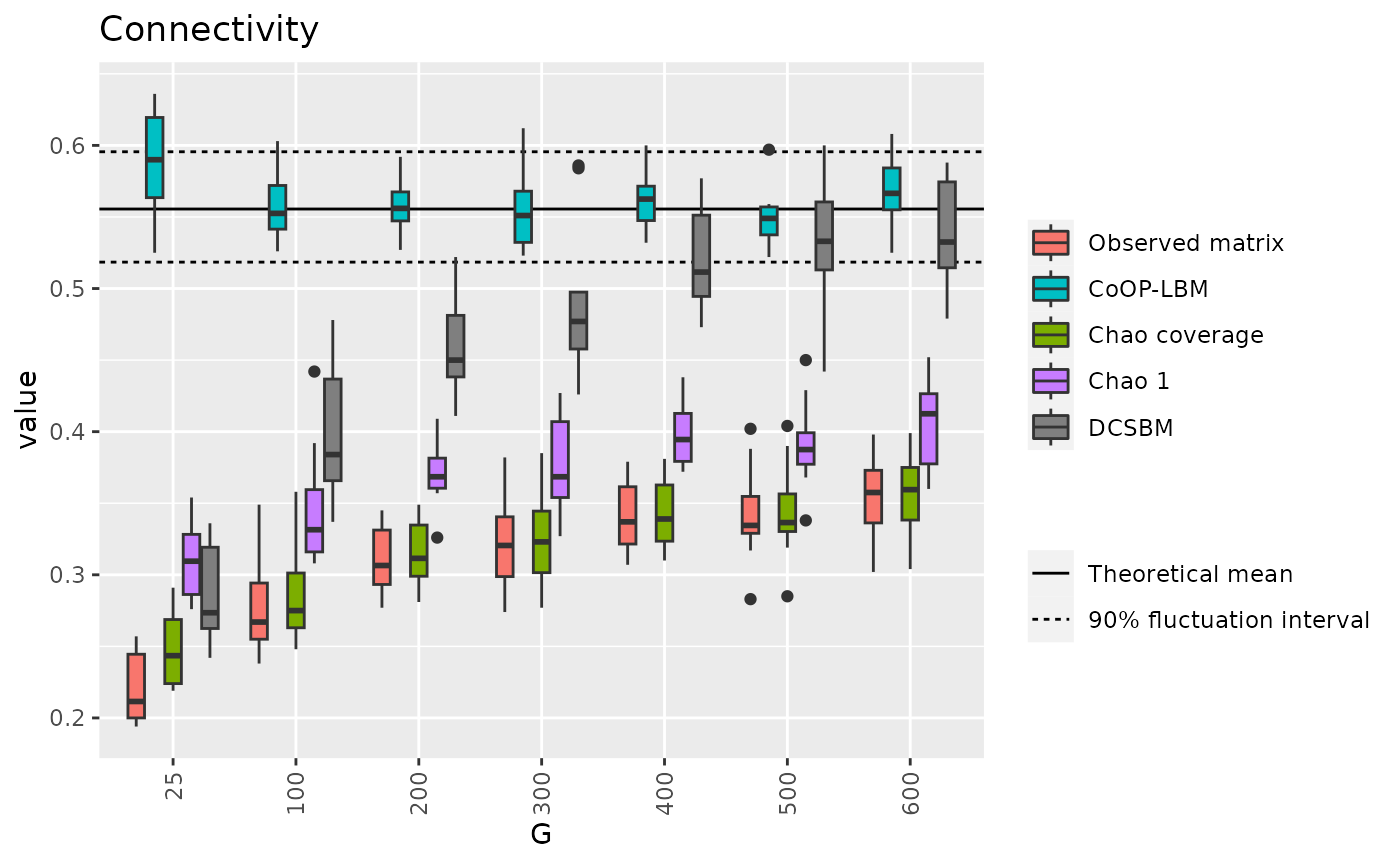

#________________CONNECTIVITY________________

F1 = sum(R_obs==1)
F2 = sum(R_obs==2)

Connectivity_M = round(mean(M),3)
Connectivity_V = round(mean(V),3)
Connectivity_LBM = round(model1$alpha1%*%model1$pi%*%model1$alpha2,3)
Connectivity_CoOP = round(model2$alpha1%*%model2$pi%*%model2$alpha2,3)
Connectivity_DCSBM=  round(model3$blockProp$row%*%(1-exp(-model3$connectParam$mean))%*%(model3$blockProp$col),3)
Chao =round(mean(V)/(1 - F1/sum(R_obs) * (sum(R_obs)-1)*F1/((sum(R_obs)-1)*F1+2*(F2+1))),3)

#________________COVERAGE________________

fL1 = rowSums(R_obs==1)
fL2 = rowSums(R_obs==2)

fC1 = colSums(R_obs==1)
fC2 = colSums(R_obs==2)


ChaoL = 1 - fL1/rowSums(R_obs) * (rowSums(R_obs)-1)*fL1/((rowSums(R_obs)-1)*fL1+2*(fL2+1))
ChaoC = 1 - fC1/colSums(R_obs) * (colSums(R_obs)-1)*fC1/((colSums(R_obs)-1)*fC1+2*(fC2+1))

ChaoL2 = rowSums(R_obs>0)/(estimateR(R_obs)["S.chao1",])
ChaoC2 = colSums(R_obs>0)/(estimateR(t(R_obs))["S.chao1",])
RMSE_chao_L = sqrt(mean((ChaoL-rowSums(R_obs>0)/rowSums(M[rowSums(R)>0,]))**2))
RMSE_chao_C = sqrt(mean((ChaoC-colSums(R_obs>0)/colSums(M[,colSums(R)>0]))**2))

RMSE_chao_L2 = sqrt(mean((ChaoL2-rowSums(R_obs>0)/rowSums(M[rowSums(R)>0,]))**2))
RMSE_chao_C2 = sqrt(mean((ChaoC2-colSums(R_obs>0)/colSums(M[,colSums(R)>0]))**2))

RMSE_CoOP_L = sqrt(mean((model2$row_coverage-rowSums(R_obs>0)/rowSums(M[rowSums(R)>0,]))**2))
RMSE_CoOP_C = sqrt(mean((model2$col_coverage-colSums(R_obs>0)/colSums(M[,colSums(R)>0]))**2))

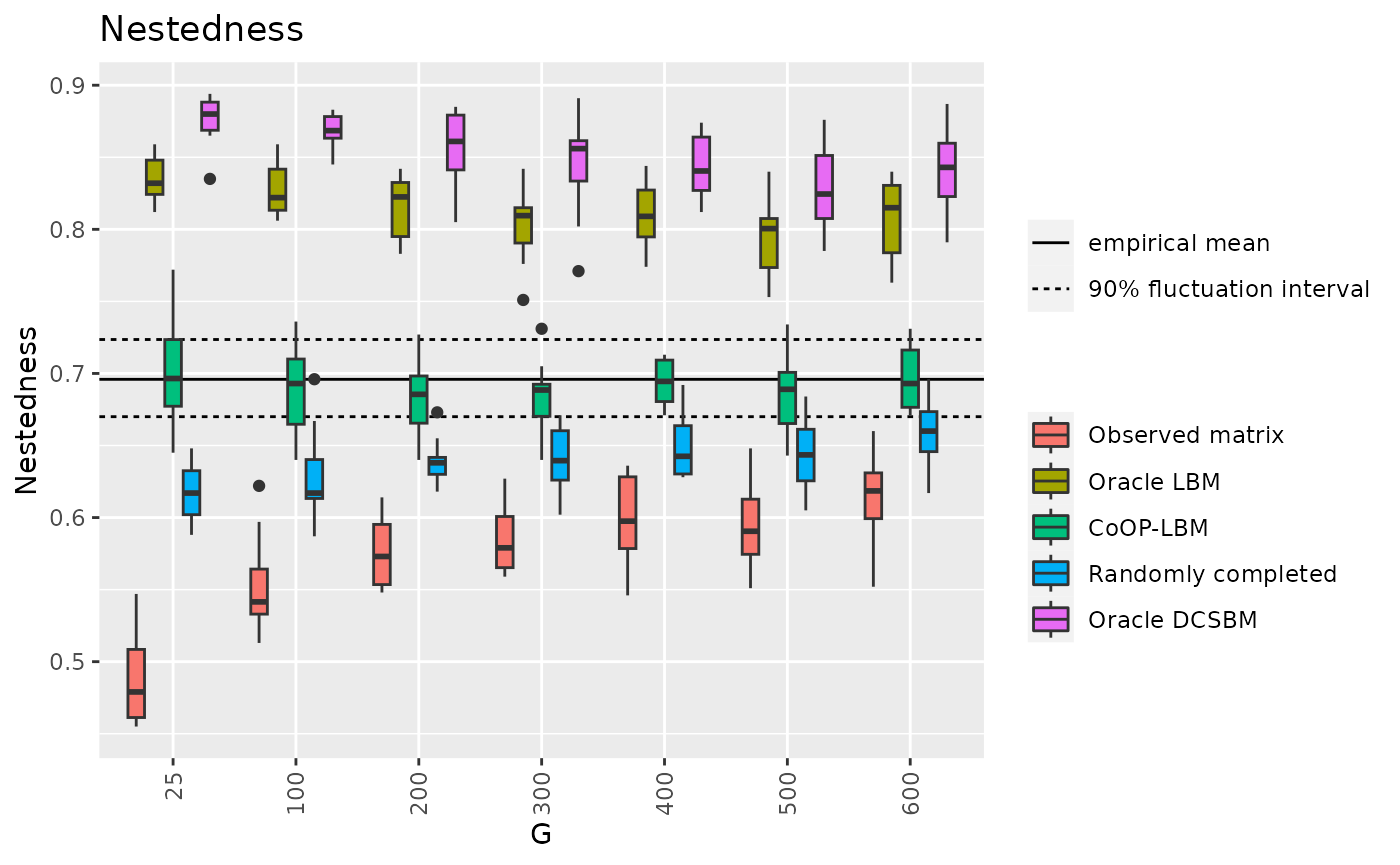

#________________NESTEDNESS________________

NODF_M = round(NODF(M)$matrix,3)
NODF_V = round(NODF(V)$matrix,3)
NODF_LBM = round(NODF(V2)$matrix,3)
NODF_CoOP = round(NODF(V3)$matrix,3)
NODF_Random = round(NODF(V4)$matrix,3)
NODF_DCSBM = round(NODF(V5)$matrix,3)

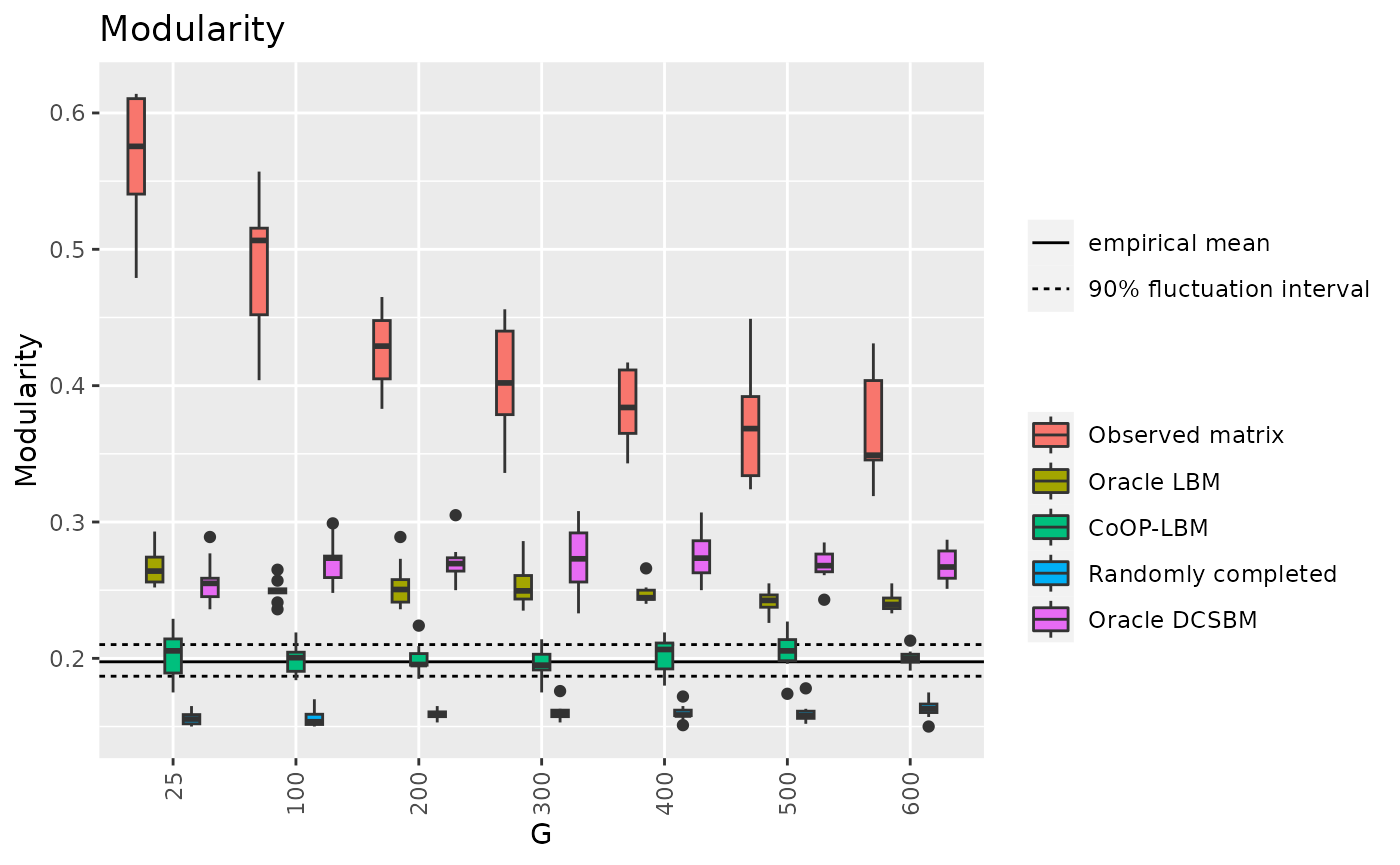

#________________MODULARITY________________

MOD_M = round(NOS(M)$mod,3)
MOD_V = round(NOS(V)$mod,3)
MOD_LBM = round(NOS(V2)$mod,3)
MOD_CoOP = round(NOS(V3)$mod,3)
MOD_Random = round(NOS(V4)$mod,3)
MOD_DCSBM = round(NOS(V5)$mod,3)


#________________RMSE________________


RMSE_lambda = sqrt(mean((lambda_i[obsrow]-model2$lambda)**2))
RMSE_mu = sqrt(mean((mu_j[obscol]-model2$mu)**2))
RMSE_lambda_mu_G = sqrt(mean((N0[obsrow,obscol]-model2$lambda_mu_G)**2))

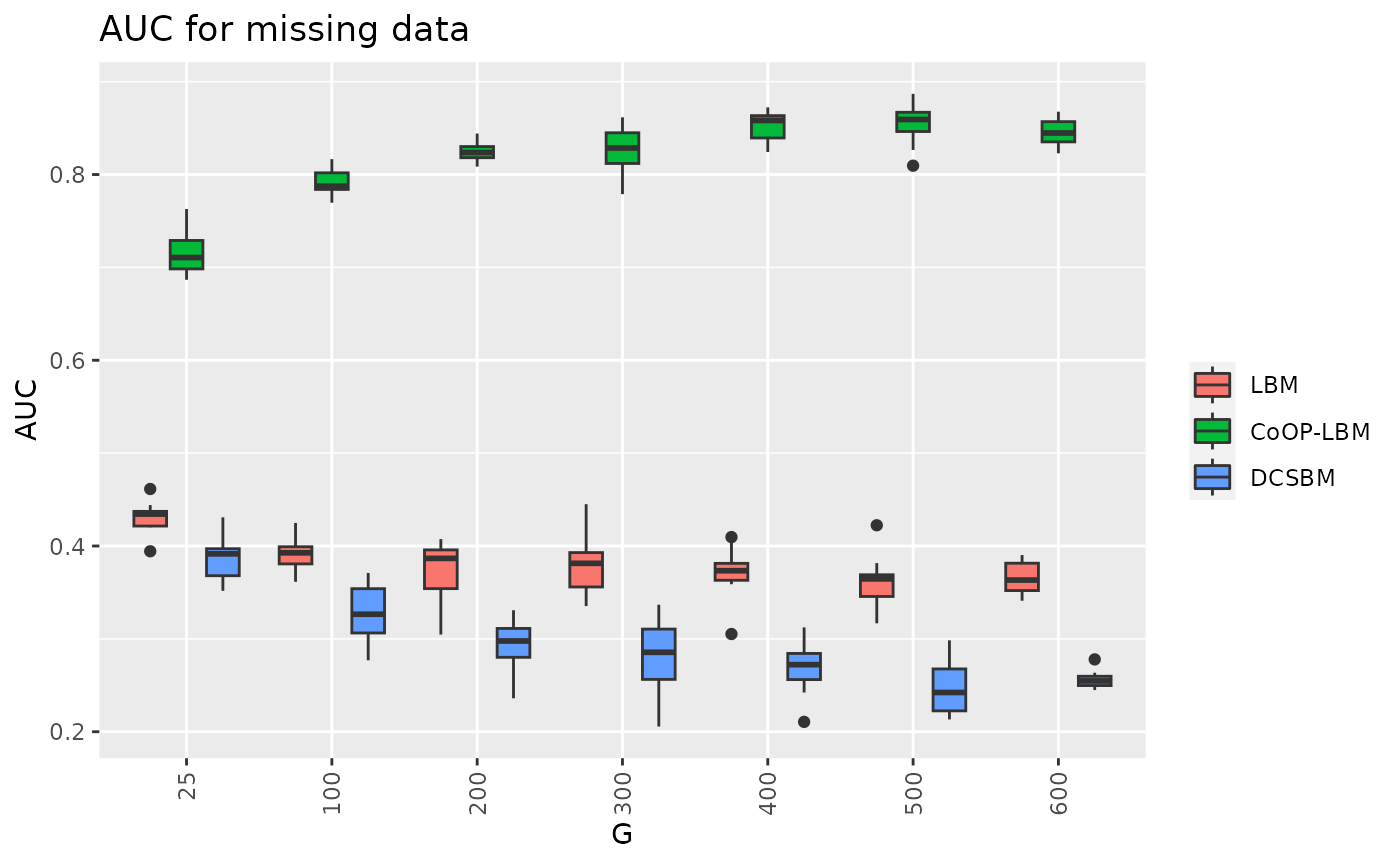

#________________AUC________________

proba_connect1 = model1$pi[model1$cluster1,model1$cluster2]
proba_connect1[V==1]=1
proba_connect2 = model2$connectivity_prob
proba_connect3 = 1-exp(-fitted(model3))
proba_connect3[V==1]=1


AUC_LBM  = auc(roc(M_obs[V==0],proba_connect1[V==0],
                   direction="<",levels=levels(as.factor(c(0,1)))))
AUC_CoOP = auc(roc(M_obs[V==0],proba_connect2[V==0],
                   direction="<",levels=levels(as.factor(c(0,1)))))
AUC_DCSBM = auc(roc(M_obs[V==0],proba_connect3[V==0],
                    direction="<",levels=levels(as.factor(c(0,1)))))

#________________PRINT________________

print(paste0("Q1 | LBM = ",dim(model1$pi)[1]," | CoOP-LBM = ",dim(model2$pi)[1]," | DCSBM = ",model3$nbBlocks[1]))
#> [1] "Q1 | LBM = 4 | CoOP-LBM = 2 | DCSBM = 5"
print(paste0("Q2 | LBM = ",dim(model1$pi)[2]," | CoOP-LBM = ",dim(model2$pi)[2]," | DCSBM = ",model3$nbBlocks[2]))
#> [1] "Q2 | LBM = 5 | CoOP-LBM = 3 | DCSBM = 5"
print(paste0("row ARI | LBM = ",round(ARIL1,3)," | CoOP-LBM = ",round(ARIL2,3)," | DCSBM = ",round(ARIL3,3)))
#> [1] "row ARI | LBM = 0.223 | CoOP-LBM = 0.35 | DCSBM = 0.024"
print(paste0("col ARI | LBM = ",round(ARIC1,3)," | CoOP-LBM = ",round(ARIC2,3)," | DCSBM = ",round(ARIC3,3)))
#> [1] "col ARI | LBM = 0.454 | CoOP-LBM = 0.673 | DCSBM = 0.032"

print(paste0("Connectivity | Complete matrix = " ,Connectivity_M ," | Observed matrix = ", Connectivity_V , " | LBM = ",Connectivity_LBM," | CoOP-LBM = ",Connectivity_CoOP," | Chao = ",Chao," | DCSBM = ",Connectivity_DCSBM ) )
#> [1] "Connectivity | Complete matrix = 0.563 | Observed matrix = 0.35 | LBM = 0.35 | CoOP-LBM = 0.572 | Chao = 0.353 | DCSBM = 0.984"
print(paste0("RMSE of row coverage | Chao cov = " ,round(RMSE_chao_L,3),"| Chao abund = ",round(RMSE_chao_L2,3) ," | CoOP-LBM = ", round(RMSE_CoOP_L,3) ))
#> [1] "RMSE of row coverage | Chao cov = 0.359| Chao abund = 0.351 | CoOP-LBM = 0.078"
print(paste0("RMSE of column coverage | Chao = " ,round(RMSE_chao_C,3) ,"| Chao abund = ",round(RMSE_chao_C2,3)," | CoOP-LBM = ", round(RMSE_CoOP_C,3) ))
#> [1] "RMSE of column coverage | Chao = 0.375| Chao abund = 0.364 | CoOP-LBM = 0.054"

print(paste0("NODF | Complete matrix = " ,NODF_M," | Observed matrix = ", NODF_V , " | LBM = ",NODF_LBM," | CoOP-LBM = ",NODF_CoOP," | DCSBM = ",NODF_DCSBM," | Random = ", NODF_Random   ) )
#> [1] "NODF | Complete matrix = 0.693 | Observed matrix = 0.596 | LBM = 0.808 | CoOP-LBM = 0.688 | DCSBM = 0.855 | Random = 0.663"
print(paste0("Modularity | Complete matrix = " ,MOD_M ," | Observed matrix = ", MOD_V , " | LBM = ",MOD_LBM," | CoOP-LBM = ",MOD_CoOP," | DCSBM = ", MOD_DCSBM," | Random = ",MOD_Random ) )
#> [1] "Modularity | Complete matrix = 0.192 | Observed matrix = 0.399 | LBM = 0.233 | CoOP-LBM = 0.194 | DCSBM = 0.278 | Random = 0.16"

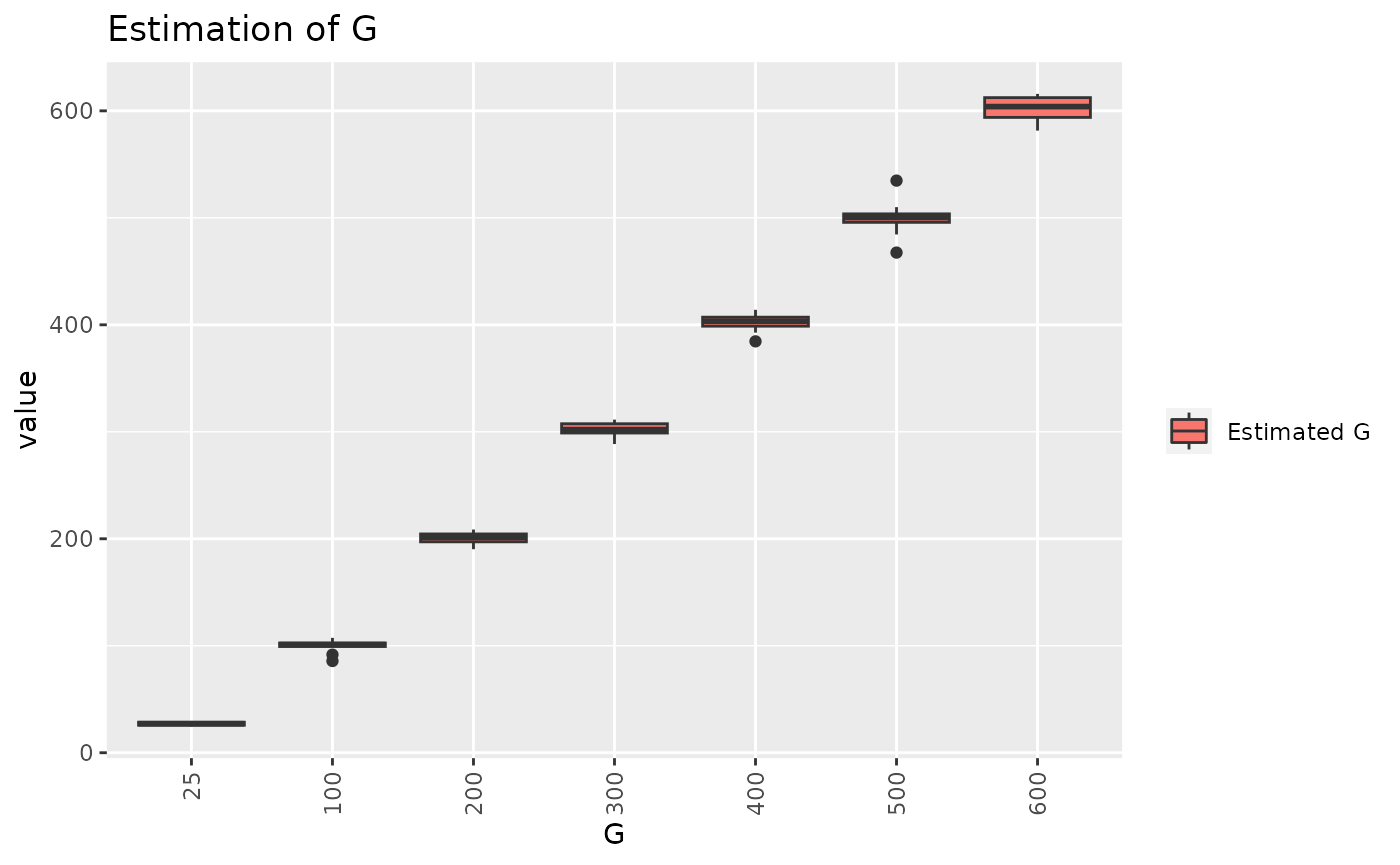

print(paste0("Estimated G : ",round(model2$G,3)))
#> [1] "Estimated G : 302.501"
print(paste0("RMSE | Lambda = ",round(RMSE_lambda,3)," | Mu = ",round(RMSE_mu,3)))
#> [1] "RMSE | Lambda = 0.007 | Mu = 0.014"
print(paste0("RMSE | Lambda x Mu x G  = ",round(RMSE_lambda_mu_G,3)))
#> [1] "RMSE | Lambda x Mu x G  = 1.264"
print(paste0("AUC | LBM  = ",round(AUC_LBM,3)," | CoOP-LBM = ",round(AUC_CoOP,3)," | DCSBM = ",round(AUC_DCSBM,3) ))
#> [1] "AUC | LBM  = 0.35 | CoOP-LBM = 0.839 | DCSBM = 0.251"

par(pty="s")
plot(lambda_i[obsrow],model2$lambda,main = "Lambda",xlab = "Theoretical",ylab="Estimated")
abline(0,1,lty=2)

plot(mu_j[obscol],model2$mu,main = "Mu",xlab = "Theoretical",ylab="Estimated")
abline(0,1,lty=2)

plot(N0[obsrow,obscol],model2$lambda_mu_G,main = "Lambda Mu G",xlab = "Theoretical",ylab="Estimated")
abline(0,1,lty=2)

plotMyMatrix(V,clustering = list(row=model1$cluster1,col=model1$cluster2),plotOptions = list(title="LBM clustering",line.width=1))

plotMyMatrix(V,clustering = list(row=model2$cluster1,col=model2$cluster2),plotOptions = list(title="CoOP-LBM clustering",line.width=1))

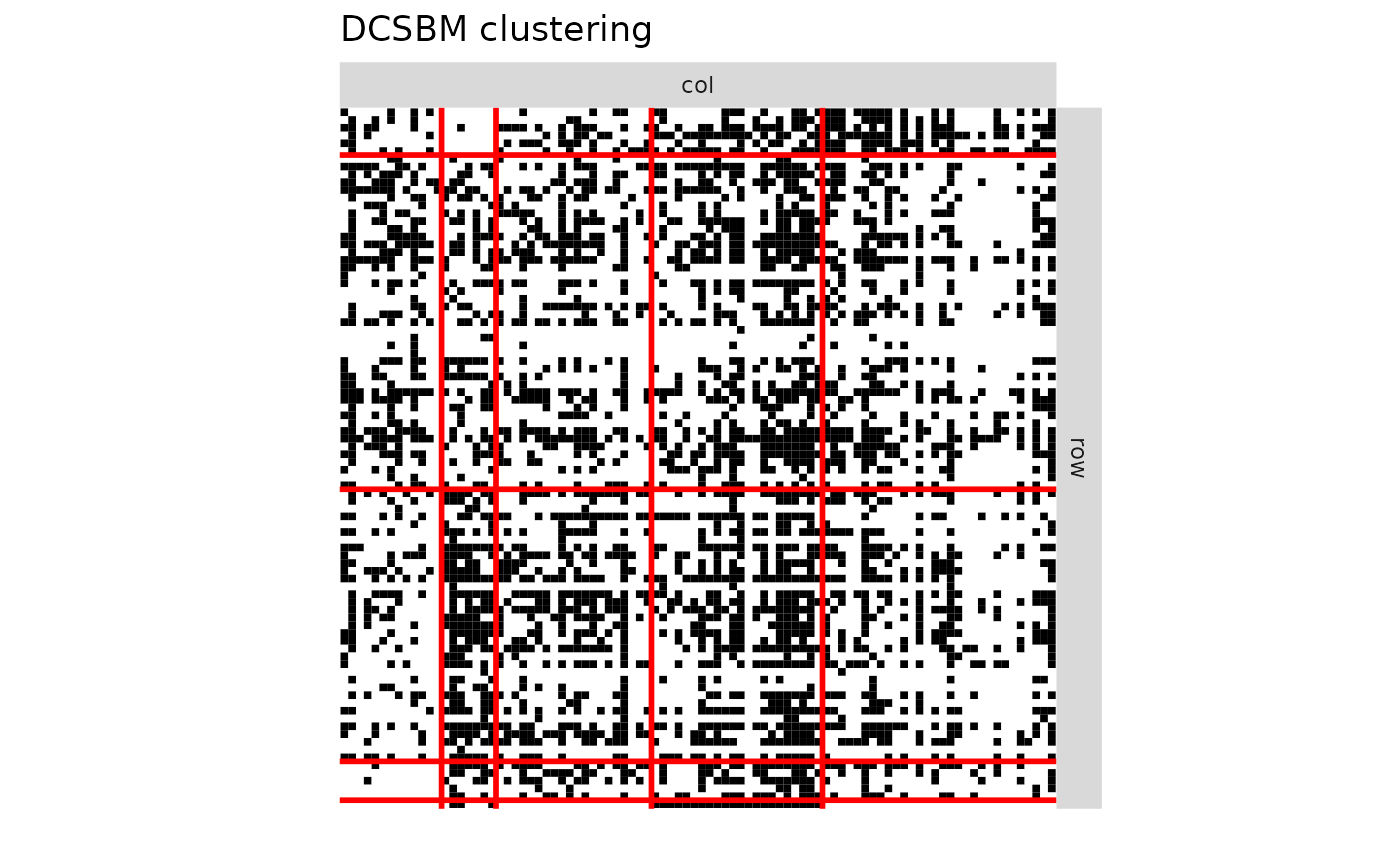

plotMyMatrix(V,clustering = list(row=model3$memberships$row,col=model3$memberships$col),plotOptions = list(title="DCSBM clustering",line.width=1))

plotMyMatrix(proba_connect1,clustering = list(row=Z1_obs,col=Z2_obs),plotOptions = list(title="LBM probabilities of missing interaction",line.width=1))

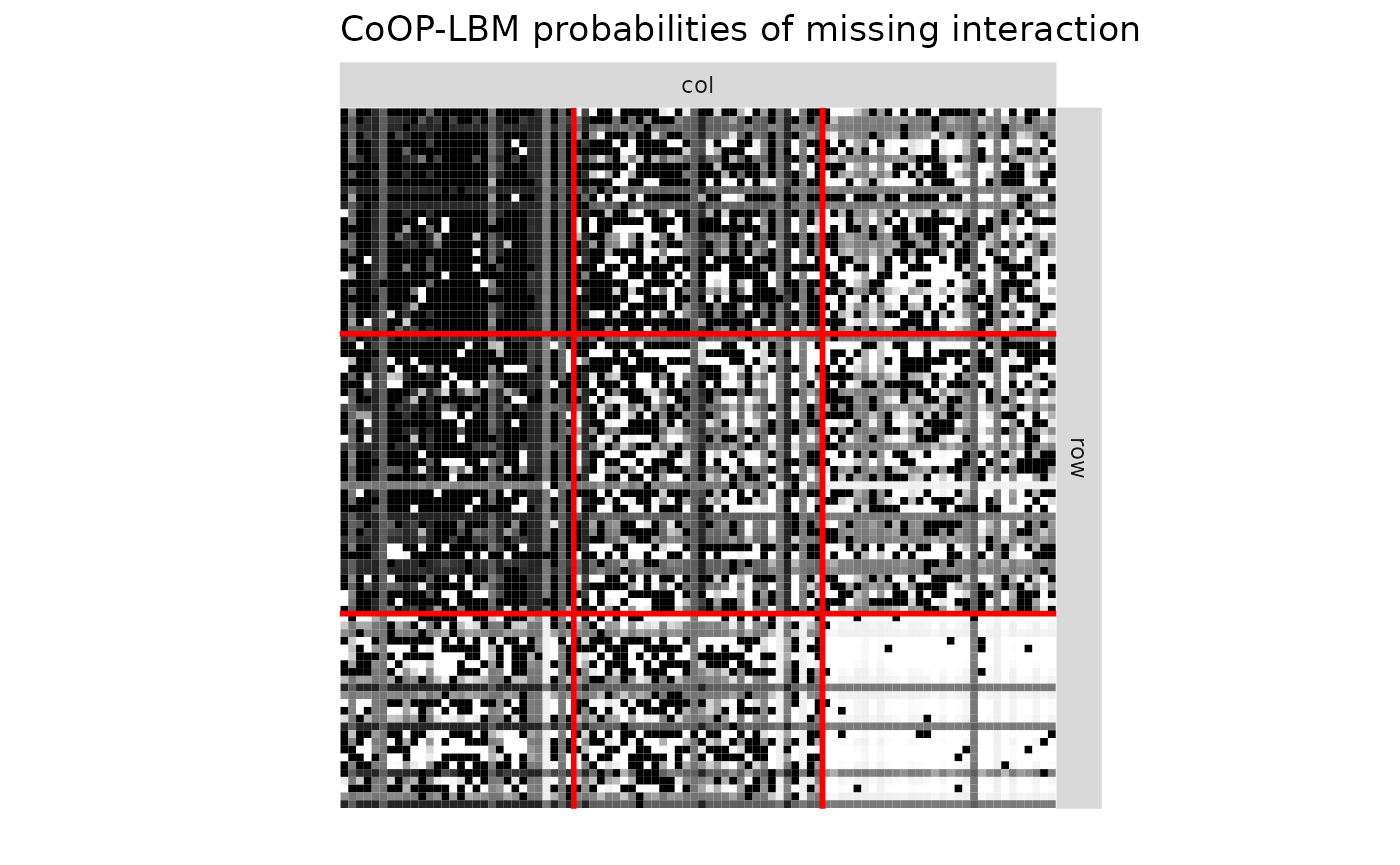

plotMyMatrix(proba_connect2,clustering = list(row=Z1_obs,col=Z2_obs),plotOptions = list(title="CoOP-LBM probabilities of missing interaction",line.width=1))

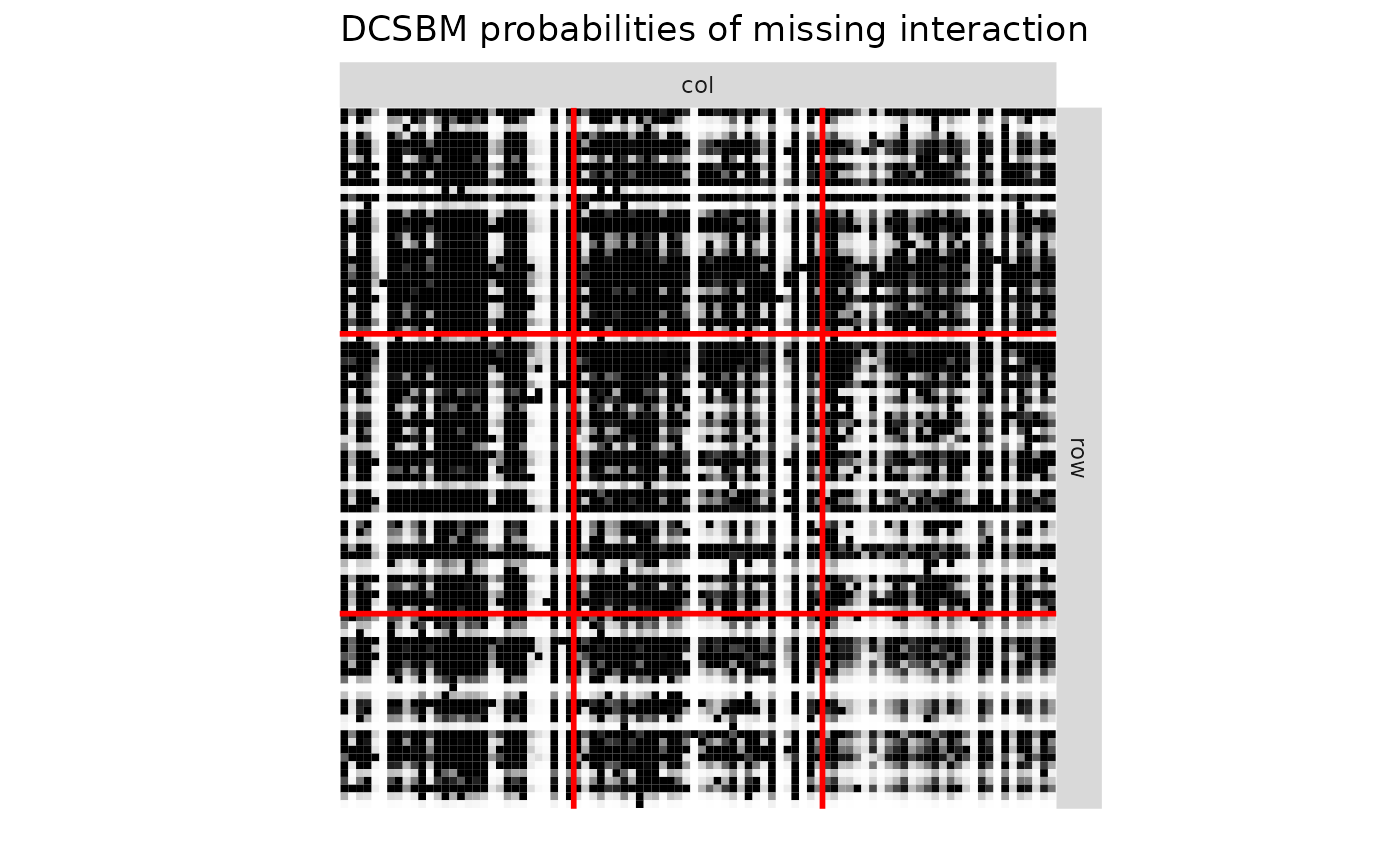

plotMyMatrix(proba_connect3,clustering = list(row=Z1_obs,col=Z2_obs),plotOptions = list(title="DCSBM probabilities of missing interaction",line.width=1))

Simulation for K iterations

n1 = 100
n2 = 100
Q1 = 3
Q2 = 3
P =matrix(c(0.95,0.75,0.5,
                 0.75,0.5,0.5,
                 0.5,0.5,0.05),Q1,Q2)


alpha1 = c(1/3,1/3,1/3)
alpha2 = c(1/3,1/3,1/3)

result = data.frame(Q1_LBM=numeric(),
                   Q2_LBM=numeric(),
                   Q1_CoOP= numeric(),
                   Q2_CoOP= numeric(),
                   Q1_DCSBM= numeric(),
                   Q2_DCSBM= numeric(),
                   ARI_row_LBM=numeric(),
                   ARI_col_LBM=numeric(),
                   ARI_row_CoOP = numeric(),
                   ARI_col_CoOP = numeric(),
                   ARI_row_DCSBM = numeric(),
                   ARI_col_DCSBM = numeric(),
                   Connectivity_M = numeric(),
                   Connectivity_V = numeric(),
                   Connectivity_LBM = numeric(),
                   Connectivity_CoOP = numeric(),
                   Connectivity_Chao = numeric(),
                   Connectivity_Chao1 = numeric(),
                   Connectivity_DCSBM = numeric(),
                   RMSE_chao_row_coverage= numeric(),
                   RMSE_chao_col_coverage= numeric(),
                   RMSE_chao1_row_coverage= numeric(),
                   RMSE_chao1_col_coverage= numeric(),
                   RMSE_CoOP_row_coverage= numeric(),
                   RMSE_CoOP_col_coverage= numeric(),
                   NODF_M = numeric(),
                   NODF_V= numeric(),
                   NODF_LBM = numeric(),
                   NODF_CoOP= numeric(),
                   NODF_DCSBM= numeric(),
                   NODF_Random= numeric(),
                   MOD_M = numeric(),
                   MOD_V= numeric(),
                   MOD_LBM = numeric(),
                   MOD_CoOP= numeric(),
                   MOD_DCSBM= numeric(),
                   MOD_Random= numeric(),

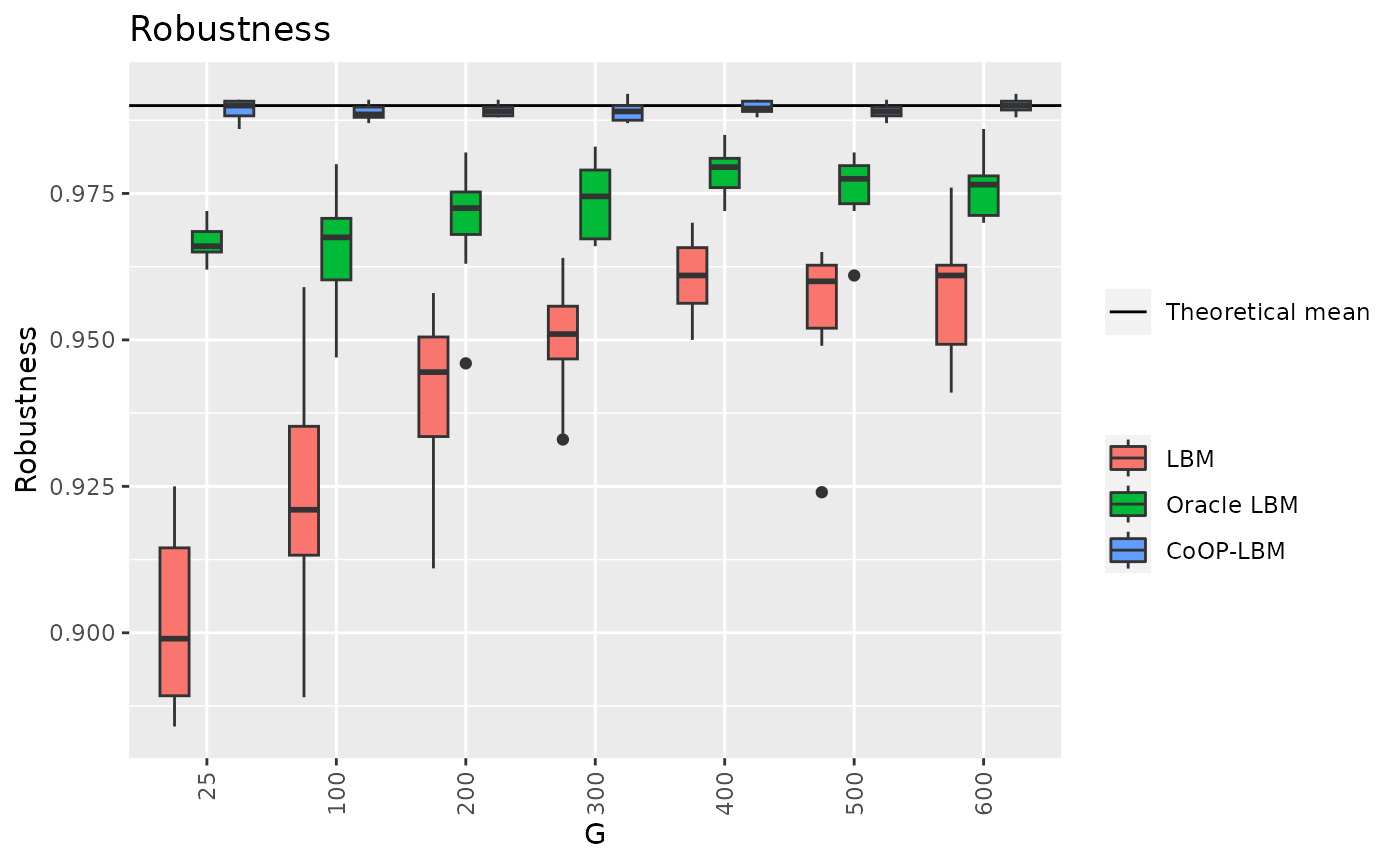

                   rob_M = numeric(),
                   rob_LBM = numeric(),
                   rob_LBM_corrected = numeric(),
                   rob_CoOP = numeric(),
                   #rob_DCSBM = numeric(),
                   G = numeric(),
                   G_CoOP = numeric(),
                   RMSE_lambda=numeric(),
                   RMSE_mu = numeric(),
                   RMSE_lambda_mu_G = numeric(),
                   AUC_LBM = numeric(),
                   AUC_CoOP = numeric(),
                   AUC_DCSBM = numeric()
                   )

list_G = c(25,100,200,300,400,500,600) ### CHANGE THE LIST TO CHANGE THE EXPLORATION OF G
K = 10 # NUMBER OF ITERATION FOR EACH G

print_result = FALSE # CHANGE TO TRUE IF YOU WANT TO PRINT RESULT AT EACH ITERATION

for (G in list_G){
for (k in 1:K){
print(k)
simulation1=simulate_lbm(P,alpha1,alpha2,n1,n2)
M = simulation1$A
Z1 =simulation1$Z
Z2 =simulation1$W
lambda_i =rbeta(n1,0.3,1.5)
mu_j = rbeta(n2,0.3,1.5)
lambda_i = lambda_i/max(lambda_i)
mu_j = mu_j/max(mu_j)
N0=lambda_i%*%t(mu_j)*G
N=matrix(rpois(n1*n2,N0),nrow=n1)
R = M*N

obsrow = rowSums(R)>0
obscol = colSums(R)>0
R_obs = R[obsrow,obscol]
M_obs = M[obsrow,obscol]
Z1_obs = Z1[obsrow]
Z2_obs = Z2[obscol]
V = 1*(R_obs>0)
try1=fit_unsupervised_LBM(V,exploOptions = list(plot=FALSE,verbosity=F))
try2=fit_unsupervised_CoOP_LBM(R_obs,exploOptions = list(plot=F,verbosity=F))
cov_row = lapply(2:nrow(V),function(k){
  X = matrix(0,nrow(V),ncol(V))
  X[k,] = 1
  X
})
cov_col = lapply(2:ncol(V),function(k){
  X = matrix(0,nrow(V),ncol(V))
  X[,k] = 1
  X
})
try3 = estimateBipartiteSBM(R_obs,model = "poisson",covariates = c(cov_row,cov_col),estimOptions = list(plot=F,verbosity=0,exploreMax = 10))


model1 = try1[[best_ICL(try1)]]
model2 = try2[[best_ICL(try2)]]
model3 = try3


#________________ARI SCORE________________



ARIL1=ARI(model1$cluster1,Z1_obs)
ARIC1=ARI(model1$cluster2,Z2_obs)

ARIL2=ARI(model2$cluster1,Z1_obs)
ARIC2=ARI(model2$cluster2,Z2_obs)

ARIL3 = ARI(model3$memberships[[1]],Z1_obs)
ARIC3 = ARI(model3$memberships[[2]],Z2_obs)

#________________COMPLETION OF MATRIX________________

V2 =V
V2[V2==0][sample(1:sum(V2==0),size = sum(M_obs)-sum(V),prob=model1$pi[model1$cluster1,model1$cluster2][V==0])]=1 #LBM
V3 = V
V3 =1*( runif(prod(dim(V)))< model2$connectivity_prob) #CoOP-LBM
V4 = V
V4[V4==0][sample(1:sum(V4==0),size = sum(M_obs)-sum(V))]=1 #Random˘
V5 =V
V5[V5==0][sample(1:sum(V5==0),size = sum(M_obs)-sum(V),prob=(1-exp(-fitted(model3)))[V==0])]=1 #DCSBM

#________________CONNECTIVITY________________

F1 = sum(R_obs==1)
F2 = sum(R_obs==2)

Connectivity_M = round(mean(M),3)
Connectivity_V = round(mean(V),3)
Connectivity_LBM = round(model1$alpha1%*%model1$pi%*%model1$alpha2,3)
Connectivity_CoOP = round(model2$alpha1%*%model2$pi%*%model2$alpha2,3)
Connectivity_DCSBM=  round(mean(1-exp(-fitted(model3))),3)
Chao =round(mean(V)/(1 - F1/sum(R_obs) * (sum(R_obs)-1)*F1/((sum(R_obs)-1)*F1+2*(F2+1))),3)
Chao1 = round(estimateR(c(R_obs))["S.chao1"]/(prod(dim(R_obs))),3)

#________________COVERAGE________________

fL1 = rowSums(R_obs==1)
fL2 = rowSums(R_obs==2)

fC1 = colSums(R_obs==1)
fC2 = colSums(R_obs==2)


ChaoL = 1 - fL1/rowSums(R_obs) * (rowSums(R_obs)-1)*fL1/((rowSums(R_obs)-1)*fL1+2*(fL2+1)) #coverage estimator
ChaoC = 1 - fC1/colSums(R_obs) * (colSums(R_obs)-1)*fC1/((colSums(R_obs)-1)*fC1+2*(fC2+1))

ChaoL2 = rowSums(R_obs>0)/(estimateR(R_obs)["S.chao1",]) #species chao 1 estimator
ChaoC2 = colSums(R_obs>0)/(estimateR(t(R_obs))["S.chao1",])

RMSE_chao_L = sqrt(mean((ChaoL-rowSums(R_obs>0)/rowSums(M[rowSums(R)>0,]))**2))
RMSE_chao_C = sqrt(mean((ChaoC-colSums(R_obs>0)/colSums(M[,colSums(R)>0]))**2))

RMSE_chao1_L = sqrt(mean((ChaoL2-rowSums(R_obs>0)/rowSums(M[rowSums(R)>0,]))**2))
RMSE_chao1_C = sqrt(mean((ChaoC2-colSums(R_obs>0)/colSums(M[,colSums(R)>0]))**2))

RMSE_CoOP_L = sqrt(mean((model2$row_coverage-rowSums(R_obs>0)/rowSums(M[rowSums(R)>0,]))**2))
RMSE_CoOP_C = sqrt(mean((model2$col_coverage-colSums(R_obs>0)/colSums(M[,colSums(R)>0]))**2))



#________________NESTEDNESS________________

NODF_M = round(NODF(M)$matrix,3)
NODF_V = round(NODF(V)$matrix,3)
NODF_LBM = round(NODF(V2)$matrix,3)
NODF_CoOP = round(NODF(V3)$matrix,3)
NODF_Random = round(NODF(V4)$matrix,3)
NODF_DCSBM = round(NODF(V5)$matrix,3)


#________________MODULARITY________________

MOD_M = round(NOS(M)$mod,3)
MOD_V = round(NOS(V)$mod,3)
MOD_LBM = round(NOS(V2)$mod,3)
MOD_CoOP = round(NOS(V3)$mod,3)
MOD_Random = round(NOS(V4)$mod,3)
MOD_DCSBM = round(NOS(V5)$mod,3)


#________________ROBUSTNESS________________

rob0= round(robustness_lbm(con = P,pi = c(1/3,1/3,1/3),rho = c(1/3,1/3,1/3),nr = 100,nc = 100)$auc,3)
rob1 = round(robustness_lbm(con =model1$pi,pi = model1$alpha1,rho =model1$alpha2,nr =dim(V)[1],nc = dim(V)[2])$auc,3)
P_LBM = model1$pi*mean(M)/mean(V)
P_LBM[P_LBM>1]=1
rob1.2 = round(robustness_lbm(con =P_LBM,pi = model1$alpha1,rho =model1$alpha2,nr =dim(V)[1],nc = dim(V)[2])$auc,3)
rob2 = round(robustness_lbm(con =model2$pi,pi = model2$alpha1,rho =model2$alpha2,nr =dim(V)[1],nc = dim(V)[2])$auc,3)
#rob3 = round(robustness_lbm(con =model3$connectParam$mean,pi = model3$blockProp$row,rho =model3$blockProp$col,nr =dim(V)[1],nc = dim(V)[2])$auc,3)



#________________RMSE________________


RMSE_lambda = sqrt(mean((lambda_i[obsrow]-model2$lambda)**2))
RMSE_mu = sqrt(mean((mu_j[obscol]-model2$mu)**2))
RMSE_lambda_mu_G = sqrt(mean((N0[obsrow,obscol]-model2$lambda_mu_G)**2))

#________________AUC________________

proba_connect1 = model1$pi[model1$cluster1,model1$cluster2]
proba_connect2 = model2$connectivity_prob
proba_connect3 = 1-exp(-fitted(model3))

AUC_LBM  = auc(roc(M_obs[V==0],proba_connect1[V==0],
                   direction="<",levels=levels(as.factor(c(0,1)))))
AUC_CoOP = auc(roc(M_obs[V==0],proba_connect2[V==0],
                   direction="<",levels=levels(as.factor(c(0,1)))))
AUC_DCSBM = auc(roc(M_obs[V==0],proba_connect3[V==0],
                    direction="<",levels=levels(as.factor(c(0,1)))))

#________________PRINT________________
if (print_result){

print(paste0("Q1 | LBM = ",dim(model1$pi)[1]," | CoOP-LBM = ",dim(model2$pi)[1]," | DCSBM = ",model3$nbBlocks[1]))
print(paste0("Q2 | LBM = ",dim(model1$pi)[2]," | CoOP-LBM = ",dim(model2$pi)[2]," | DCSBM = ",model3$nbBlocks[2]))
print(paste0("row ARI | LBM = ",round(ARIL1,3)," | CoOP-LBM = ",round(ARIL2,3)," | DCSBM = ",round(ARIL3,3)))
print(paste0("col ARI | LBM = ",round(ARIC1,3)," | CoOP-LBM = ",round(ARIC2,3)," | DCSBM = ",round(ARIC3,3)))

print(paste0("Connectivity | Complete matrix = " ,Connectivity_M ," | Observed matrix = ", Connectivity_V , " | LBM = ",Connectivity_LBM," | CoOP-LBM = ",Connectivity_CoOP," | Chao = ",Chao," | DCSBM = ",Connectivity_DCSBM ) )
print(paste0("RMSE of row coverage | Chao cov = " ,round(RMSE_chao_L,3),"| Chao abund = ",round(RMSE_chao_L2,3) ," | CoOP-LBM = ", round(RMSE_CoOP_L,3) ))
print(paste0("RMSE of column coverage | Chao = " ,round(RMSE_chao_C,3) ,"| Chao abund = ",round(RMSE_chao_C2,3)," | CoOP-LBM = ", round(RMSE_CoOP_C,3) ))

print(paste0("NODF | Complete matrix = " ,NODF_M," | Observed matrix = ", NODF_V , " | LBM = ",NODF_LBM," | CoOP-LBM = ",NODF_CoOP," | DCSBM = ",NODF_DCSBM," | Random = ", NODF_Random   ) )
print(paste0("Modularity | Complete matrix = " ,MOD_M ," | Observed matrix = ", MOD_V , " | LBM = ",MOD_LBM," | CoOP-LBM = ",MOD_CoOP," | DCSBM = ", MOD_DCSBM," | Random = ",MOD_Random ) )

print(paste0("Estimated G : ",round(model2$G,3)))
print(paste0("RMSE | Lambda = ",round(RMSE_lambda,3)," | Mu = ",round(RMSE_mu,3)))
print(paste0("RMSE | Lambda x Mu x G  = ",round(RMSE_lambda_mu_G,3)))
print(paste0("AUC | LBM  = ",round(AUC_LBM,3)," | CoOP-LBM = ",round(AUC_CoOP,3)," | DCSBM = ",round(AUC_DCSBM,3) ))


print("##########")
}
result[nrow(result)+1,] = c(dim(model1$pi)[1],
                            dim(model1$pi)[2],
                            dim(model2$pi)[1],
                            dim(model2$pi)[2],
                            model3$nbBlocks[1],
                            model3$nbBlocks[2],
                            ARIL1,
                            ARIC1,
                            ARIL2,
                            ARIC2,
                            ARIL3,
                            ARIC3,
                            Connectivity_M,
                            Connectivity_V,
                            Connectivity_LBM,
                            Connectivity_CoOP,
                            Chao,
                            Chao1,
                            Connectivity_DCSBM,
                            RMSE_chao_L,
                            RMSE_chao_C,
                            RMSE_chao1_L,
                            RMSE_chao1_C,
                            RMSE_CoOP_L,
                            RMSE_CoOP_C,
                            NODF_M,
                            NODF_V,
                            NODF_LBM,
                            NODF_CoOP,
                            NODF_DCSBM,
                            NODF_Random,
                            MOD_M,
                            MOD_V,
                            MOD_LBM,
                            MOD_CoOP,
                            MOD_DCSBM,
                            MOD_Random,
                            rob0,
                            rob1,
                            rob1.2,
                            rob2,
                            #rob3,
                            G,
                            model2$G,
                            RMSE_lambda,
                            RMSE_mu,
                            RMSE_lambda_mu_G,
                            AUC_LBM,
                            AUC_CoOP,
                            AUC_DCSBM)
}}
#> Warning in sqrt(sum(Deriv.Ch1 %*% t(Deriv.Ch1) * (diag(a) - a %*%
#> t(a)/S.ACE))): NaNs produced

df1 = result[c("G","ARI_row_LBM","ARI_row_CoOP","ARI_row_DCSBM")]
df1_long <- melt(df1, id.vars=c("G"))
p1 <- ggplot(df1_long, aes(x=factor(G),y=value,fill=variable))+
  geom_boxplot() +  theme(legend.position = "bottom",axis.text.x = element_text(angle = 90, vjust = 0.5, hjust=1)) + ggtitle("ARI for row clustering")+ labs(y="ARI",x="G")+scale_fill_discrete(labels = c("LBM","CoOP-LBM","DCSBM"))+ guides(fill=guide_legend(title=""))

df2 = result[c("G","ARI_col_LBM","ARI_col_CoOP","ARI_col_DCSBM")]
df2_long <- melt(df2, id.vars=c("G"))
p2 <- ggplot(df2_long, aes(x=factor(G),y=value,fill=variable))+
  geom_boxplot()  +  theme(legend.position = "bottom",axis.text.x = element_text(angle = 90, vjust = 0.5, hjust=1)) + ggtitle("ARI for column clustering")+ labs(y="",x="G")+scale_fill_discrete(labels = c("LBM","CoOP-LBM","DCSBM")) + guides(fill=guide_legend(title=""))


grid.arrange(p1,p2,ncol=2)

tbl1 <- with(result, table(Q1_LBM, G))
p3=ggplot(as.data.frame(tbl1), aes(factor(G), Freq, fill = Q1_LBM)) +
theme(axis.text.x = element_text(angle = 90, vjust = 0.5, hjust=1))+labs(x="G")+
  geom_col(position = 'stack')
tbl2 <- with(result, table(Q2_LBM, G))
p4=ggplot(as.data.frame(tbl2), aes(factor(G), Freq, fill = Q2_LBM)) +
theme(axis.text.x = element_text(angle = 90, vjust = 0.5, hjust=1))+labs(x="G")+
  geom_col(position = 'stack')
tbl3 <- with(result, table(Q1_CoOP, G))
p5=ggplot(as.data.frame(tbl3), aes(factor(G), Freq, fill = Q1_CoOP)) +
theme(axis.text.x = element_text(angle = 90, vjust = 0.5, hjust=1))+labs(x="G")+
  geom_col(position = 'stack')
tbl4 <- with(result, table(Q2_CoOP, G))
p6=ggplot(as.data.frame(tbl4), aes(factor(G), Freq, fill = Q2_CoOP)) +
theme(axis.text.x = element_text(angle = 90, vjust = 0.5, hjust=1))+labs(x="G")+
  geom_col(position = 'stack')

tbl3DCSBM <- with(result, table(Q1_DCSBM, G))
p5_DCSBM=ggplot(as.data.frame(tbl3DCSBM), aes(factor(G), Freq, fill = Q1_DCSBM)) +
theme(axis.text.x = element_text(angle = 90, vjust = 0.5, hjust=1))+labs(x="G")+
  geom_col(position = 'stack')
tbl4DCSBM <- with(result, table(Q2_DCSBM, G))
p6_DCSBM=ggplot(as.data.frame(tbl4DCSBM), aes(factor(G), Freq, fill = Q2_DCSBM)) +
theme(axis.text.x = element_text(angle = 90, vjust = 0.5, hjust=1))+labs(x="G")+
  geom_col(position = 'stack')

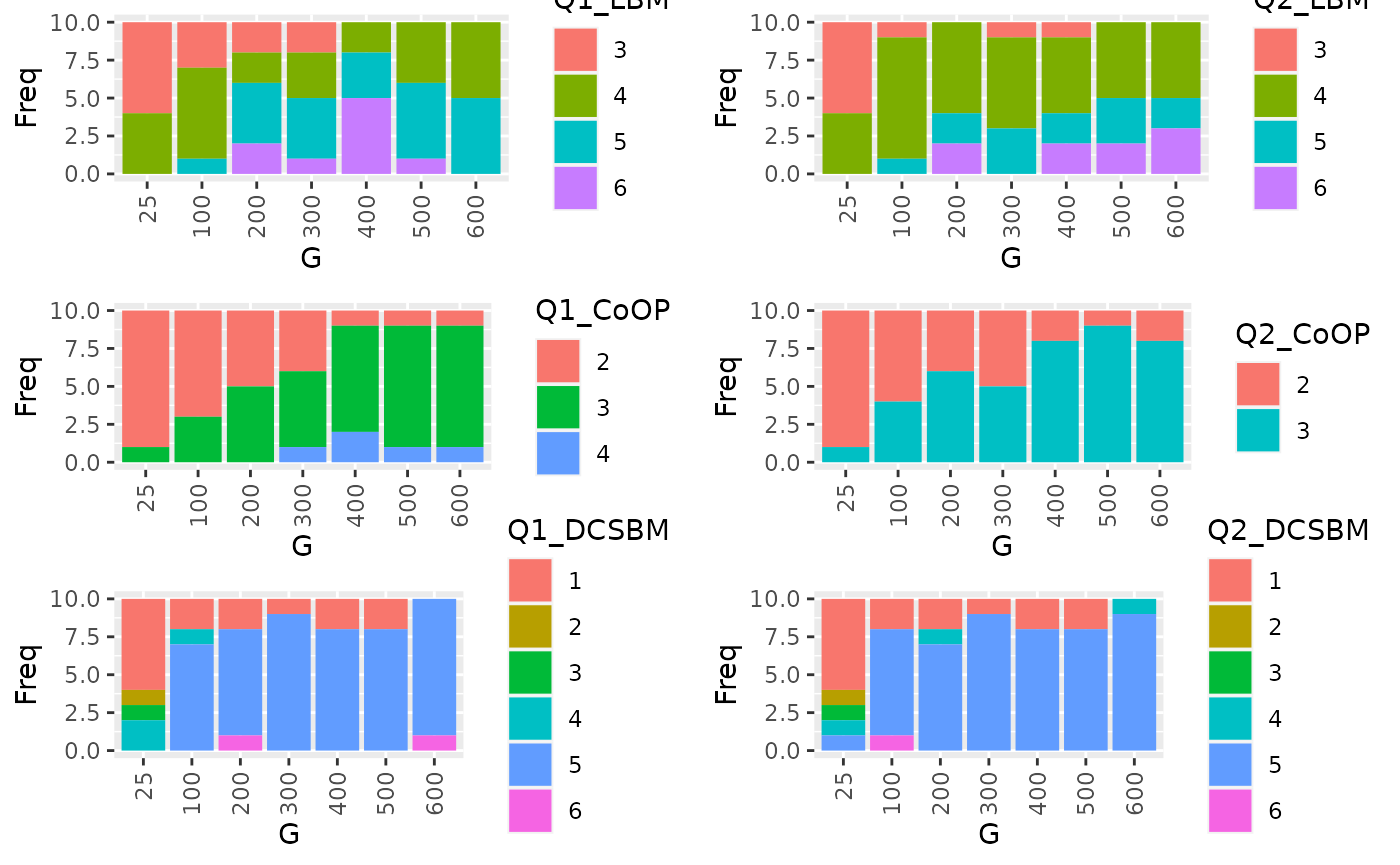

grid.arrange(p3,p4,p5,p6,p5_DCSBM,p6_DCSBM,ncol=2, nrow = 3)

library(scales)
connectivity_q05 = quantile(result$Connectivity_M,0.05)
mean_connectivity = alpha1%*%P%*%alpha2
connectivity_q95 = quantile(result$Connectivity_M,0.95)

d_connectivity = data.frame(m=c(connectivity_q05,mean_connectivity,connectivity_q95))


df3 = result[c("G","Connectivity_V","Connectivity_CoOP","Connectivity_Chao","Connectivity_Chao1","Connectivity_DCSBM")]
df3_long <- melt(df3, id.vars=c("G"))
#df3_long$variable = factor(df3_long$variable ,levels = levels(unique(df3_long$variable))[c(1,3,2,4)])
p7 <- ggplot(df3_long, aes(x=factor(G),y=value,fill=variable))+
  geom_hline(data=d_connectivity,aes(yintercept = m,linetype=c("b","a","b")))+
  geom_boxplot()  +  theme(axis.text.x = element_text(angle = 90, vjust = 0.5, hjust=1)) + ggtitle("Connectivity")+labs(x="G")+guides(fill=guide_legend(title=""))+
  #scale_fill_discrete(labels = c("Observed matrix","Chao coverage","CoOP-LBM","Chao 1"))+
  scale_fill_manual(labels = c("Observed matrix","CoOP-LBM","Chao coverage","Chao 1","DCSBM"),values= hue_pal()(4)[c(1,3,2,4,5)]) +
  labs(linetype="")+
 scale_linetype_discrete( labels=c("Theoretical mean","90% fluctuation interval"))
p7

df4 = result[c("G","RMSE_chao_row_coverage","RMSE_chao1_row_coverage","RMSE_CoOP_row_coverage")]

df4_long <- melt(df4, id.vars=c("G"))
p8 <- ggplot(df4_long, aes(x=factor(G),y=value,fill=variable))+
  geom_boxplot()  +  theme(axis.text.x = element_text(angle = 90, vjust = 0.5, hjust=1)) + ggtitle("RMSE of row coverage") + scale_fill_discrete(labels = c("Chao coverage","Chao 1","CoOP-LBM"))+labs(y="RMSE",x="G")+ guides(fill=guide_legend(title=""))


df5 = result[c("G","RMSE_chao_col_coverage","RMSE_chao1_col_coverage","RMSE_CoOP_col_coverage")]

df5_long <- melt(df5, id.vars=c("G"))
p9 <- ggplot(df5_long, aes(x=factor(G),y=value,fill=variable))+
  geom_boxplot()  +  theme(axis.text.x = element_text(angle = 90, vjust = 0.5, hjust=1)) + ggtitle("RMSE of column coverage") + scale_fill_discrete(labels = c("Chao coverage","Chao 1","CoOP-LBM"))+labs(y="RMSE",x="G")+ guides(fill=guide_legend(title=""))


grid.arrange(p8,p9, nrow = 2)

df6 = result[c("G","NODF_V","NODF_LBM","NODF_CoOP","NODF_Random","NODF_DCSBM")]

nodf_q05 = quantile(result$NODF_M,0.05)
nodf_mean = mean(result$NODF_M)
nodf_q95 = quantile(result$NODF_M,0.95)

d6 = data.frame(m=c(nodf_q05,nodf_mean ,nodf_q95 ))


df6_long <- melt(df6, id.vars=c("G"))
p10 <- ggplot(df6_long, aes(x=factor(G),y=value,fill=variable))+
  geom_hline(data=d6,aes(yintercept = m,linetype=c("b","a","b")))+
  geom_boxplot()  +  theme(axis.text.x = element_text(angle = 90, vjust = 0.5, hjust=1)) +
  ggtitle("Nestedness")+
  scale_fill_discrete(labels = c("Observed matrix","Oracle LBM","CoOP-LBM","Randomly completed","Oracle DCSBM"))+
 guides(fill=guide_legend(title="")) + labs(color="",shape="",y="Nestedness",x="G")+
   labs(linetype="")+
 scale_linetype_discrete( labels=c("empirical mean","90% fluctuation interval"))

p10

df7 = result[c("G","MOD_V","MOD_LBM","MOD_CoOP","MOD_Random","MOD_DCSBM")]

MOD_q05 = quantile(result$MOD_M,0.05)
MOD_mean = mean(result$MOD_M)
MOD_q95 = quantile(result$MOD_M,0.95)

d7 = data.frame(m=c(MOD_q05,MOD_mean ,MOD_q95 ))


df7_long <- melt(df7, id.vars=c("G"))
p11 <- ggplot(df7_long, aes(x=factor(G),y=value,fill=variable))+
  geom_hline(data=d7,aes(yintercept = m,linetype=c("b","a","b")))+
  geom_boxplot()  +
  theme(axis.text.x = element_text(angle = 90, vjust = 0.5, hjust=1)) +
  ggtitle("Modularity")+
  scale_fill_discrete(labels = c("Observed matrix","Oracle LBM","CoOP-LBM","Randomly completed","Oracle DCSBM"))+
 guides(fill=guide_legend(title="")) + labs(color="",shape="",y="Modularity",x="G")+
   labs(linetype="")+
 scale_linetype_discrete( labels=c("empirical mean","90% fluctuation interval"))

p11

df8 = result[c("G","rob_LBM","rob_LBM_corrected","rob_CoOP")]
df8_long <- melt(df8, id.vars=c("G"))

rob_mean = mean(result$rob_M)

p12 <-  ggplot(df8_long, aes(x=factor(G),y=value,fill=variable))+
  geom_hline(aes(yintercept=rob_mean,linetype="Theoretical mean"))+
  geom_boxplot()  +  theme(axis.text.x = element_text(angle = 90, vjust = 0.5, hjust=1))+
  ggtitle("Robustness")+
  scale_fill_discrete(labels = c("LBM","Oracle LBM","CoOP-LBM"))+
   labs(color="",shape="",y="Robustness",x="G")+
  guides(fill=guide_legend(title=""),linetype=guide_legend(title="") )
p12

df9 = result[c("G","AUC_LBM","AUC_CoOP","AUC_DCSBM")]

df9_long <- melt(df9, id.vars=c("G"))
p13 <- ggplot(df9_long, aes(x=factor(G),y=value,fill=variable))+
  geom_boxplot()  +  theme(axis.text.x = element_text(angle = 90, vjust = 0.5, hjust=1)) + ggtitle("AUC for missing data")+scale_fill_discrete(labels = c("LBM","CoOP-LBM","DCSBM")) + guides(fill=guide_legend(title=""))+labs(y="AUC",x="G")
p13

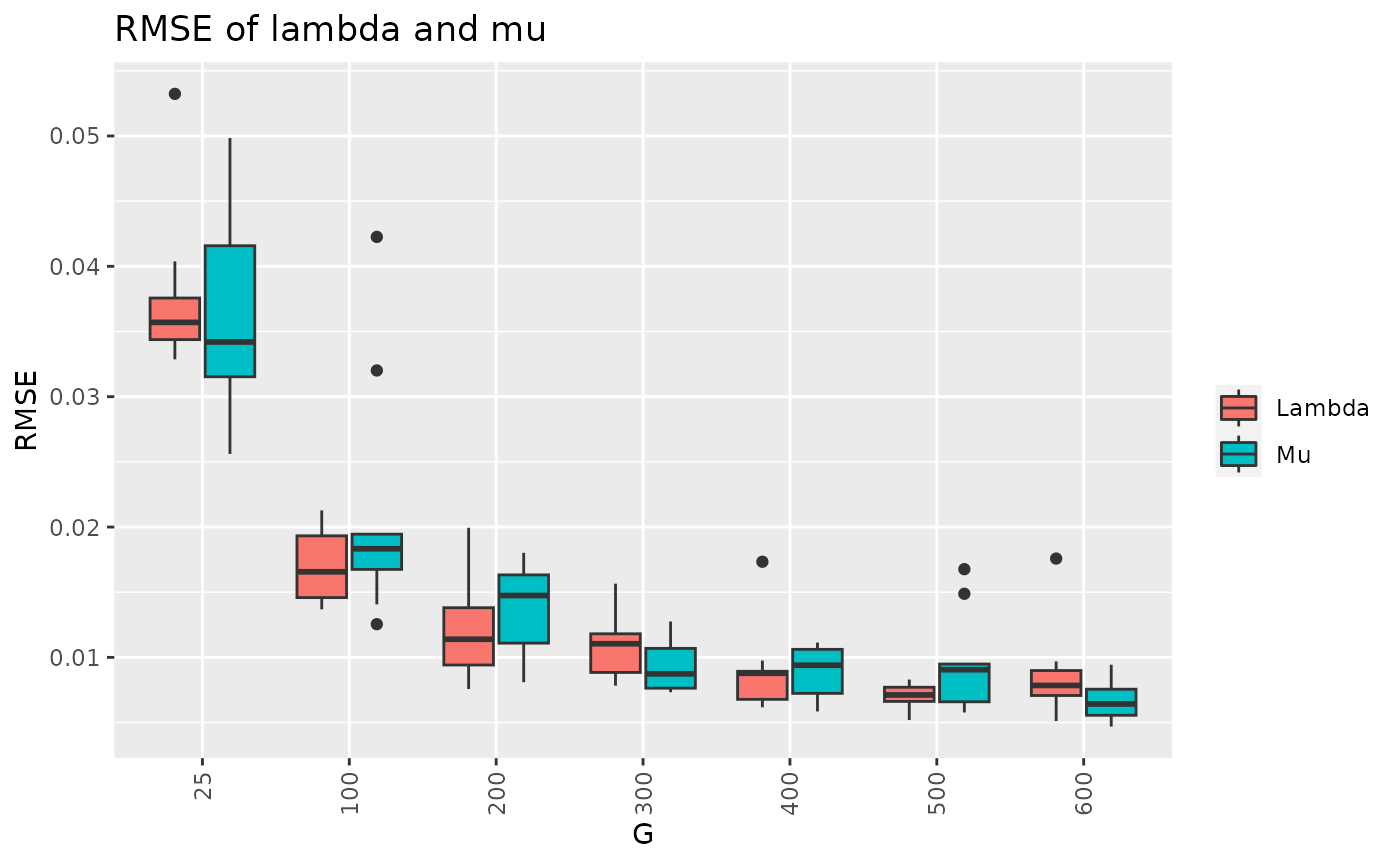

df10 = result[c("G","RMSE_lambda","RMSE_mu")]

df10_long <- melt(df10, id.vars=c("G"))
p14 <- ggplot(df10_long, aes(x=factor(G),y=value,fill=variable))+
  geom_boxplot()  +  theme(axis.text.x = element_text(angle = 90, vjust = 0.5, hjust=1)) + ggtitle("RMSE of lambda and mu") + scale_fill_discrete(labels = c("Lambda","Mu"))+labs(y="RMSE",x="G")+ guides(fill=guide_legend(title=""))
p14

df11 = result[c("G","G_CoOP")]

df11_long <- melt(df11, id.vars=c("G"))
p11 <- ggplot(df11_long, aes(x=factor(G),y=value,fill=variable))+
  geom_boxplot()  +  theme(axis.text.x = element_text(angle = 90, vjust = 0.5, hjust=1)) + ggtitle("Estimation of G") +
  scale_fill_discrete(labels = c("Estimated G"))+labs(x="G")+ guides(fill=guide_legend(title=""))
p11
